Surface Mounted Installation Slim LED Strip Aluminium Profile
Slim 9mm is a surface mounted high-quality anodized LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 12mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.
High resolution pictures of led silver/grey aluminum profile

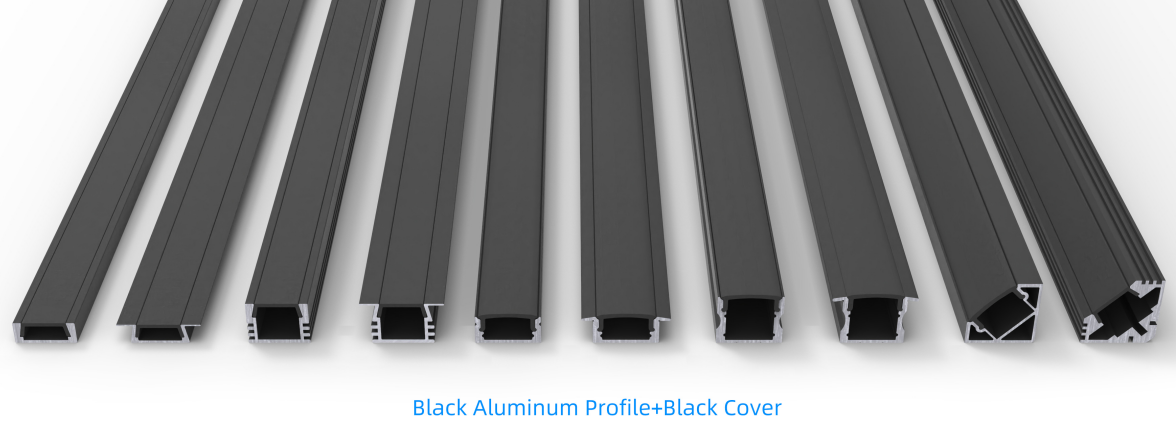

Black aluminum porfile with black PC diffuser
White aluminum profile with white PC diffuser
Main Specifications
| Model No.: | K17-1 |
| Item Type: | LED Strip Aluminium Profile |
| Dimensions: | (W)16.8*(H)12 mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 12mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver, black, white |
| Diffuser material: | PMMA/PC |
| Diffuser finished: | Opal/Frosted/Clear/ Black |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days
Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option
|
Dimmensions
Application
White led aluminum profile with Opal PC diffuser.
Black aluminum profile with black PC diffuser
FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: Which lighting exhibitions do you participate in?
A: Hong Kong International Lighting Fair (April 6th to 9th, October 27th to 30th), Guangzhou International Lighting Fair (June 9th to 12th), Light + Building, LFI, etc. Welcome to visit us any One.
Q: Can I take samples?
A: Yes, we provide 20cm/pc free samples and accessories, just freight cost is on you.
Q: What is your standard length? And maximum length?
A: We have 2 meters, 2.5 meters, or even 3 meters long, the maximum length is 6 meters.
Product Tags:
|
|
IP44 PMMA PC Surface Mount Led Channel Sandblasting With Clear Lens Images
|
